Composing of System

6000 network fingerprint lock is composed of terminal management equipment (computer and card sender), data communication device (serial sever, controlling box, safe wire chase) and 6000 network fingerprint lock.

Number of the lock

The data communication adopts RS-485 serial bus. One communication serial port can connect 30 sets of 6000 network fingerprint locks. It can expand several sets of serial servers by “ communication server“. One set of network lock can contain more than 65000 sets at most.

Safe wire chase

Comprehensive wiring is one of the key factors for stable network lock operation. The wire uses 5 types of shield double plastic wire. According to this requirement, the module 6000 network fingerprint lock has safe wire chase, enabling the cable to move in the door and doorframe freely and safely. So it is convenient to install and maintain.

Controlling box

The controlling box of power and signal makes the locks connect on the same bus for signal relay and network adaptation. Each single node will fail, but it will not affect normal use of other device.

Module 6000 lock introduction

The American standard five bolts and three interlock electronic lock core meets the ANSI standard. Clipper-built appearance and steady-going essence endow it with concinnity without loosing generosity. Surface processing adopts PVD technique, so that the lock is with much more guarantee. There is no exposed bolt appeared on the surface of the lock body. Therefore it is much stronger in destructive resistance. Opening the door by moving the handle helps effectively protect the clutch and prolong the service life of lock.

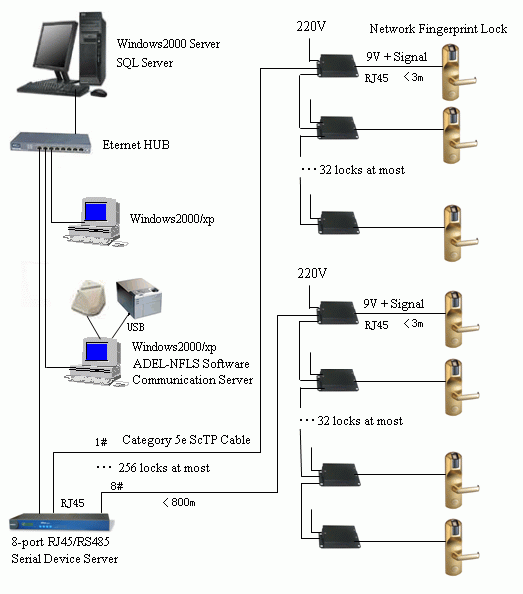

network topology figure

Technique parameter

Network
local area network	100Mbps
topological structure	combination of bus module and star module
communication
communication interface	RS-232(server) to RS-485 (door lock)
medium	5 types of shield double plastic wire
distance of serial server to equipment	longest transmission distance 1000 meters
distance of controlling box to equipment	longest transmission 3 meters
Power
input voltage of controlling box	220V ±10%
output voltage of controlling box	9V
PCB performance parameter
external voltage	9V-12V
voltage of battery holder	6V
dynamic current	<300ma
static current	<20ma
largest card capacity	120
anti-static and anti-lighting strike voltage	15KV
fingerprint performance parameter
sensor	surface horniness coated glass CMOS 300,000 pixels
resolution	500 DPI
verification comparison time	<1S
comparison mode	1:N
false reject rate	<1%
false accept rate	<0.0001%
finger using angle	360 degrees comparison
ray interference	sunlight and direct sunlight available
largest fingerprint capacity	30
Software
Application platform	Windows 2000/2003/xp
Database	SQL Server 7.0/2000/2005
Browser	Internet Explorer 6.0+
Environment
Storage temperature	-20°C-80°C
Storage humidity	10%-95%
Working temperature	-10°C-55°C
Working humidity	20%-95%
